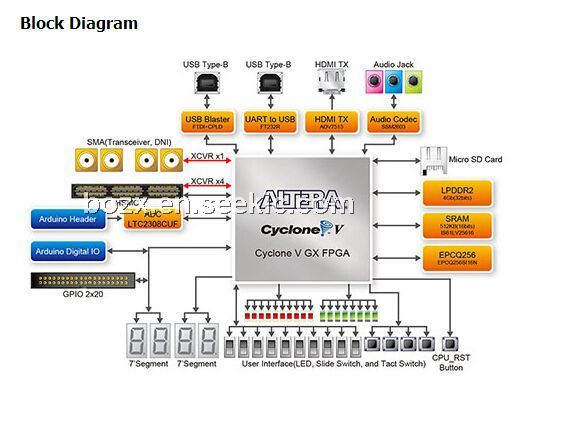

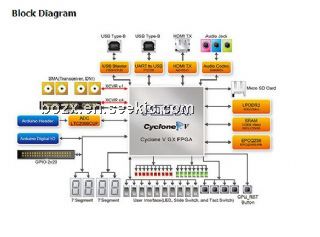

Product Summary

FPGA Device
Cyclone V GX 5CGXFC5C6F27C7N Device
77K Programmable Logic Elements
4884 Kbits embedded memory
Six Fractional PLLs
Two Hard Memory Controllers
Six 3.125G Transceivers
Configuration and Debug


Quad Serial Configuration device – EPCQ256 on FPGA
On-Board USB Blaster (Normal Type-B USB connector)
JTAG and AS mode configuration supported

Parametrics

Memory Device

  • 4Gb LPDDR2 x32 bits data bus
  • 4Mb SRAM x16 bits data bus

Communication

  • UART to USB

Expansion I/O

  • HSMC x 1, including 4-lanes 3.125G transceiver
  • 2x20 GPIO Header
  • Arduino header, including analog pins
  • SMA x 4 (DNI), one-lane 3.125G transceiver

Display

  • HDMI TX, compatible with DVI v1.0 and HDCP v1.4

Features

Audio

  • 24-bit CODEC, Line-in, line-out, and microphone-in jacks

Switches, Buttons, LED, and 7-Segments

  • 18 LEDs
  • 10 Slide Switches
  • 4 Debounced Push Buttons
  • 1 CPU reset Push Buttons
  • Four 7-Segments

Micro SD Card Socket

  • Provides SPI and 4-bit SD mode for SD Card access

Power

  • 12V DC input
